John Deere Diagnostic Cable Set | PRCS-JDE-3

A custom-built cable set for your vehicle range.

  • Manufacturer
  • Compatibility
  • Number of Cables
  • Breakoutbox included?
1,569.45 € 1,569.45 € (Tax excluded)
1,569.45 € (Tax excluded)

○ Out of stock
◷ Delivery time on request

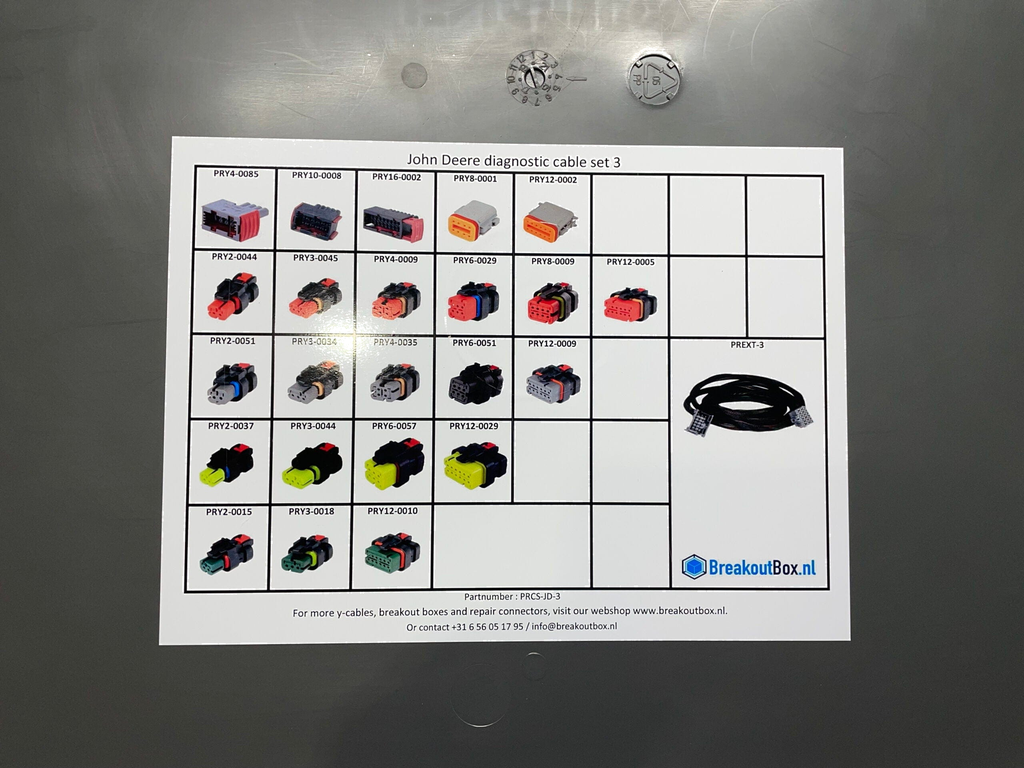

John Deere Diagnostic Cable Set

The John Deere Diagnostic Cable Set gives technicians a practical, organised starting point for non-invasive electrical diagnosis on the relevant application.

The set combines application-specific measurement cables and supporting components in one case. Connect between the original wiring and the relevant component to inspect signals with a suitable multimeter or oscilloscope—without piercing the vehicle wiring.

Built for systematic diagnostics

  • Application-specific cable set for professional signal measurement
  • Non-invasive access to relevant circuits
  • Practical case for organised workshop or training use
  • Supports methodical fault finding with suitable test equipment

Please verify the connector version and application before ordering. The exact scope is shown in the product configuration and specifications.

SpecificationsConnector details
ManufacturerBreakoutbox
CompatibilityUniversal
Number of Cables23
Breakoutbox included?PRTK-BOB18
Cable Purpose23 diagnostic cables
ConnectorPRY referenceBrandModel / seriesFunction

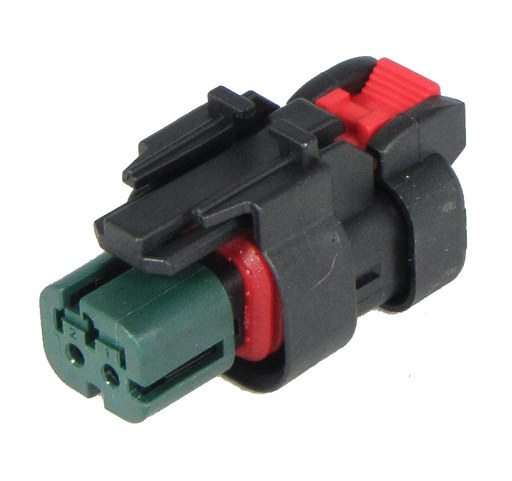

2 Pins Female connector | PRC2-0015-B
PRY2-0015John Deere, Perkins—John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)
2 Pins Female connector | PRC2-0037-B
PRY2-0037John Deere—John Deere diagnostic set (PRCS-JDE-3)

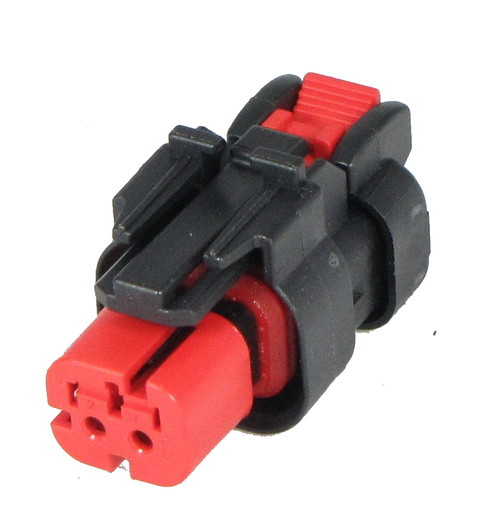

2 Pins Female connector | PRC2-0044-B
PRY2-0044John Deere, Perkins—John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)

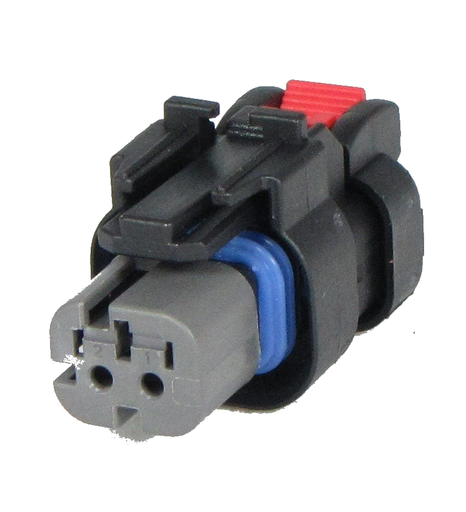

2 Pins Female connector | PRC2-0051-B
PRY2-0051AGCO, John Deere, Perkins—AGCO diagnostic set (PRCS-AGCO-001), John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)

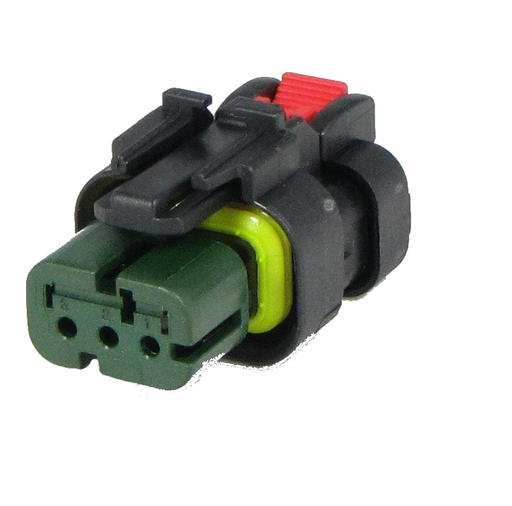

3 Pins Female connector | PRC3-0018-B
PRY3-0018John Deere, Perkins—John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)

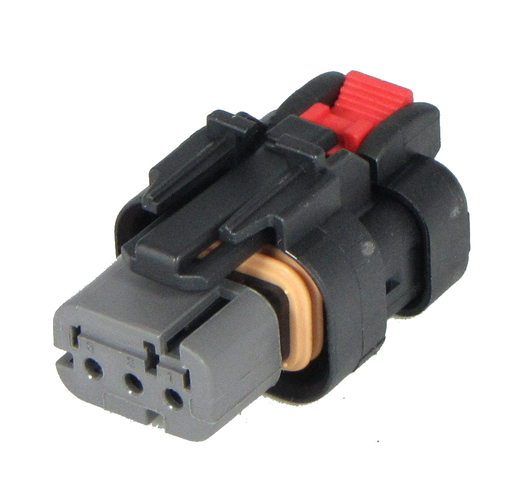

3 Pins Female connector | PRC3-0034-B
PRY3-0034AGCO, John Deere—AGCO diagnostic set (PRCS-AGCO-001), John Deere diagnostic set (PRCS-JDE-3)

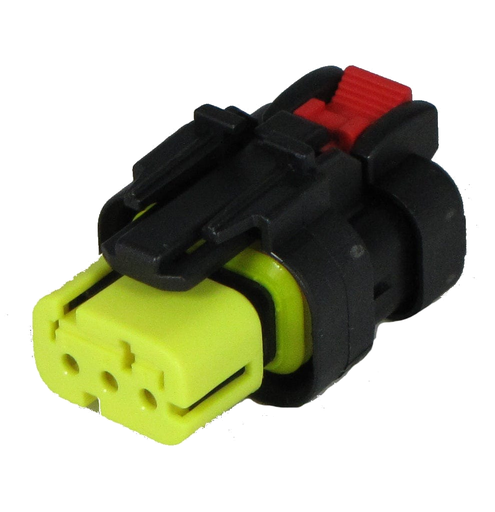

3 Pins Female connector | PRC3-0044-B
PRY3-0044John Deere, Perkins—John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)

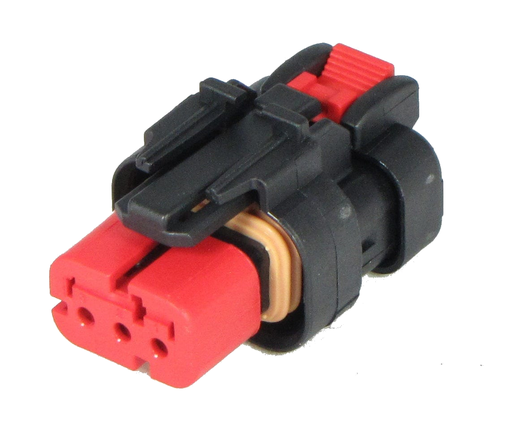

3 Pins Female connector | PRC3-0045-B
PRY3-0045John Deere—John Deere diagnostic set (PRCS-JDE-3)
4 Pins Female connector | PRC4-0009-B
PRY4-0009John Deere—John Deere diagnostic set (PRCS-JDE-3)

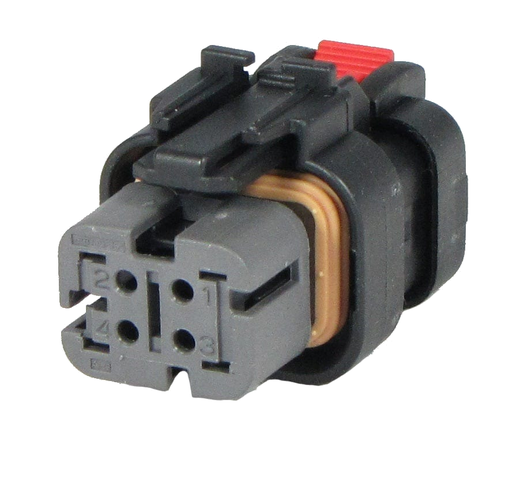

4 Pins Female connector | PRC4-0035-B
PRY4-0035John Deere—John Deere diagnostic set (PRCS-JDE-3)

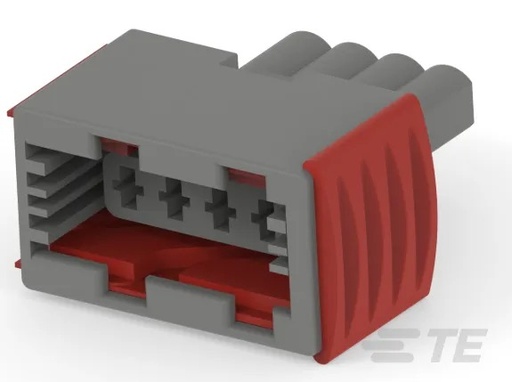

4 Pins Female connector | PRC4-0085-B
PRY4-0085John Deere—John Deere diagnostic set (PRCS-JDE-3)

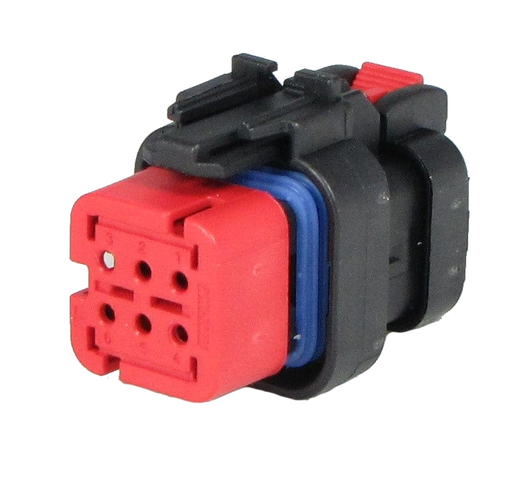

6 Pins Female connector | PRC6-0029-B
PRY6-0029AGCO, John Deere, Perkins—AGCO diagnostic set (PRCS-AGCO-001), John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)
6 Pins Female connector | PRC6-0051-B
PRY6-0051John Deere, Perkins—John Deere diagnostic set (PRCS-JDE-3), Perkins diagnostic set (PRCS-PERKINS-4)

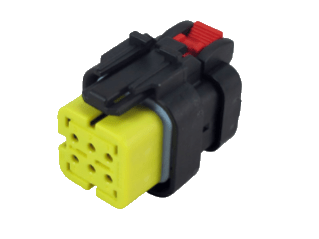

6 Pins Female connector | PRC6-0057-B
PRY6-0057John Deere—John Deere diagnostic set (PRCS-JDE-3)
8 Pins Female connector | PRC8-0001-B
PRY8-0001Caterpillar, John Deere, Komatsu, Liebherr, Scania—Caterpillar diagnostic set (PRCS-CAT-UNI-DEU), John Deere diagnostic set (PRCS-JDE-3), Komatsu diagnostic set (PRCS-KOMATSU-1), Liebherr diagnostic set (PRCS-LHR-01), Engine / ABS Sensors

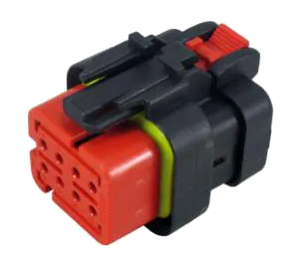

8 Pins Female connector | PRC8-0009-B
PRY8-0009John Deere—John Deere diagnostic set (PRCS-JDE-3)
10 Pins Female connector | PRC10-0008-B
PRY10-0008Hyundai / Kia, John Deere—John Deere diagnostic set (PRCS-JDE-3)
12 Pins Female connector | PRC12-0002-B
PRY12-0002Caterpillar, John Deere, Komatsu, Liebherr—Caterpillar diagnostic set (PRCS-CAT-UNI-DEU), John Deere diagnostic set (PRCS-JDE-3), Komatsu diagnostic set (PRCS-KOMATSU-1), Liebherr diagnostic set (PRCS-LHR-01)

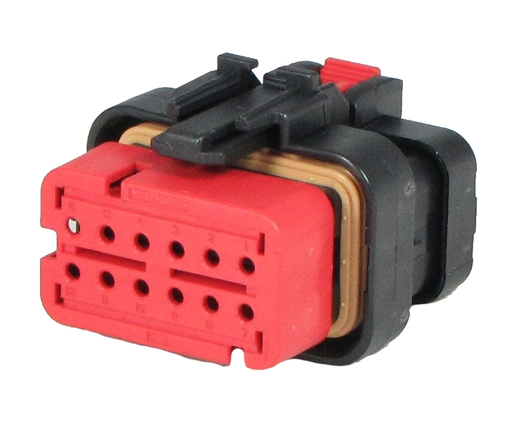

12 Pins Female connector | PRC12-0005-B
PRY12-0005John Deere—John Deere diagnostic set (PRCS-JDE-3)

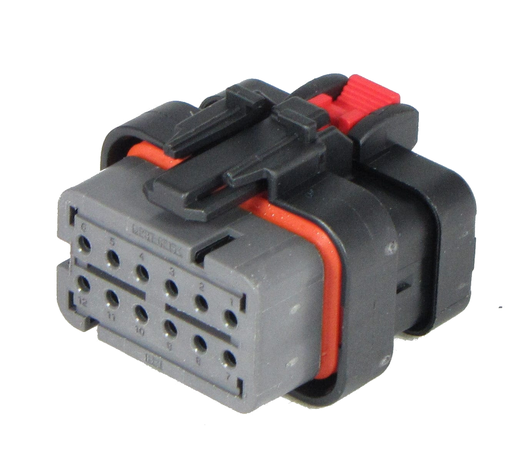

12 Pins Female connector | PRC12-0009-B
PRY12-0009John Deere—John Deere diagnostic set (PRCS-JDE-3)

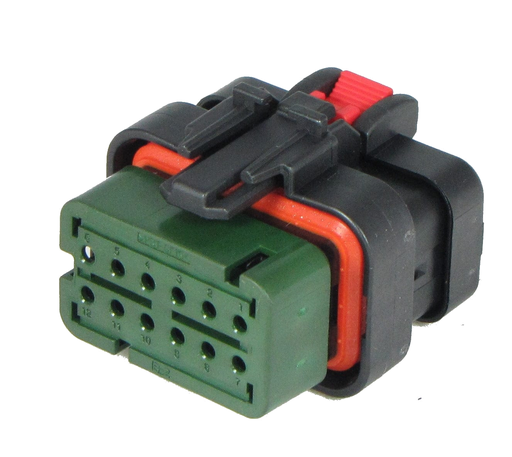

12 Pins Female connector | PRC12-0010-B
PRY12-0010John Deere—John Deere diagnostic set (PRCS-JDE-3)

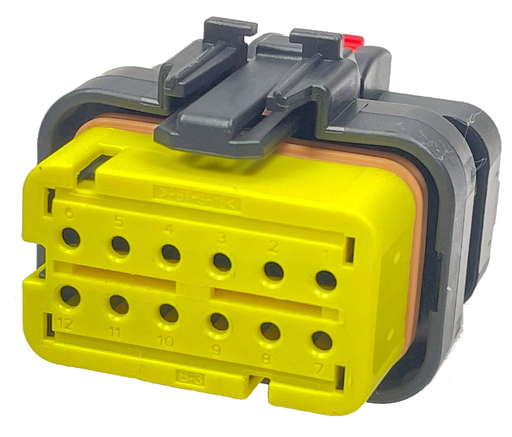

12 Pins Female connector | PRC12-0029-B
PRY12-0029John Deere—John Deere diagnostic set (PRCS-JDE-3)

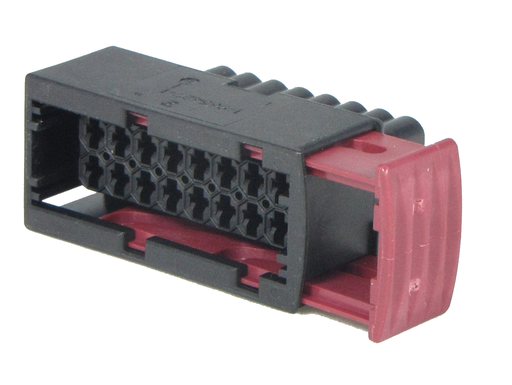

16 Pins Female connector | PRC16-0002-B
PRY16-0002John Deere—John Deere diagnostic set (PRCS-JDE-3)

General Terms and Conditions

Internal ReferencePRCS-JDE-3
HS Code85366990
Weight5.0 kg
Customer lead time77 days
