Universal Diagnostic Cable Set – USA Vehicles | PRCS-UNI-04

Special USA diagnostic set with 25 parallel Y-cables, an 18-pin Breakout Box and a large storage case for safe in-line signal measurement.

  • Manufacturer
  • Compatibility
  • Number of Cables
  • Breakoutbox included?
2,236.38 € 2,236.38 € (Tax excluded)
2,236.38 € (Tax excluded)

○ Out of stock
◷ Delivery time on request

Universal Diagnostic Cable Set

The Universal Diagnostic Cable Set gives technicians a practical, organised starting point for non-invasive electrical diagnosis on the relevant application.

The set combines application-specific measurement cables and supporting components in one case. Connect between the original wiring and the relevant component to inspect signals with a suitable multimeter or oscilloscope—without piercing the vehicle wiring.

Built for systematic diagnostics

  • Application-specific cable set for professional signal measurement
  • Non-invasive access to relevant circuits
  • Practical case for organised workshop or training use
  • Supports methodical fault finding with suitable test equipment

Please verify the connector version and application before ordering. The exact scope is shown in the product configuration and specifications.

SpecificationsConnector details
ManufacturerBreakoutbox
CompatibilityUniversal
Number of Cables25
Breakoutbox included?PRTK-BOB18
Cable Purpose25 diagnostic cables
ConnectorPRY referenceBrandModel / seriesFunction
1 Pin Female connector | PRC1-0006-B
PRY1-0006Chevrolet / GMCC-Series (Kodiak / TopKick)Bodybuilder grounding block / chassis-ground provision

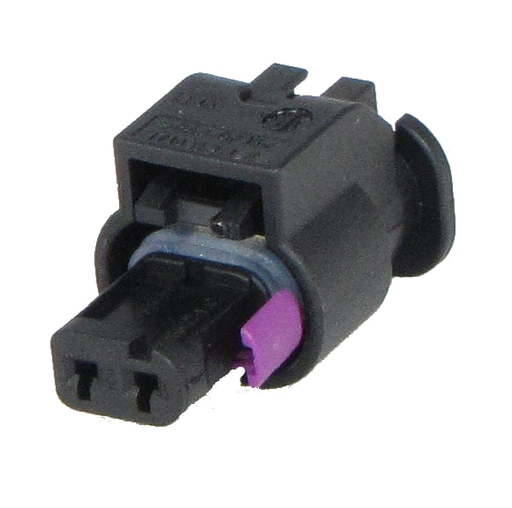

2 Pins Female connector | PRC2-0003-B
PRY2-0003Audi, DAF, Iveco, Mercedes-Benz, Perkins, SEAT, Skoda, Tesla, Tesla, Tesla, Tesla, Tesla, VolkswagenCybertruck, Cybertruck, Cybertruck, Cybertruck, CybertruckIveco diagnostic set (PRCS-IVECO-UPGRADE-1), Mercedes-Benz diagnostic set (PRCS-MBX-01), Perkins diagnostic set (PRCS-PERKINS-4), Exterior Door Trigger - C-Pillar Left, Exterior Door Trigger - C-Pillar Right, Front Fascia Camera Heater, Seat Heater - 2R Backrest Left, Seat Heater - 2R Backrest Right
2 Pins Female connector | PRC2-0014-B
PRY2-0014Chevrolet, Chevrolet / GMC, Chevrolet / GMC, Chrysler / Dodge, DAF, Dodge, Dodge / Ram, RamLow Cab Forward, Express / Savana, Express / Savana, Town & Country / Grand Caravan, Viper, Ram Pickup, 2500 / 3500 / 4500 / 5500Backup alarm connector J-111, Backup alarm, Passenger door-latch connector X2, Adjustable pedal motor, Driver and passenger door latch motors, Diesel fuel heater and wastegate solenoid, Diesel fuel heater and wastegate solenoid
2 Pins Female connector | PRC2-0031-B
PRY2-0031AGCO, Hyundai / Kia, Isuzu, Iveco, Perkins, TeslaModel 3AGCO diagnostic set (PRCS-AGCO-001), Iveco diagnostic set (PRCS-IVECO-MANTICORE), Perkins diagnostic set (PRCS-PERKINS-4), Frunk latch

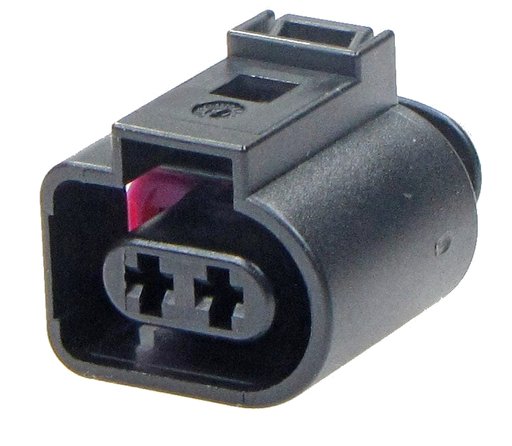

2 Pins Female connector | PRC2-0050-B
PRY2-0050STILL, Tesla, Tesla, VolkswagenModel 3 (2017–2020)STILL diagnostic set (PRCS-STILL-VAG), Windshield washer pump — Washer & Wipers, Windshield washer pump, Volkswagen Group diagnostic set (PRCS-VW-1)
2 Pins Female connector | PRC2-0053-B
PRY2-0053BMW, Chrysler / Dodge, Dodge, Iveco, Mercedes-Benz, Tesla, Tesla300 / Magnum / Charger, Dakota, Cybertruck, CybertruckBMW horn circuit diagnostics, Diesel engine oil temperature sensor, Front ABS wheel speed sensors, Iveco diagnostic set (PRCS-IVECO-SUISSE), Mercedes-Benz diagnostic set (PRCS-MBX-01), Reverse Lamp - Left, Reverse Lamp - Right

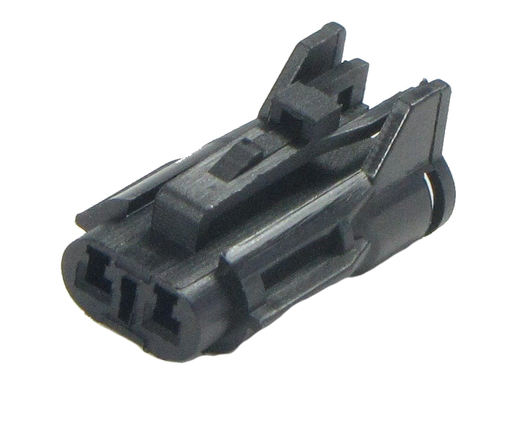

2 Pins Female connector | PRC2-0070-B
PRY2-0070Dodge, Hyundai / Kia, Hyundai /Kia, Tesla, TeslaJourney, Cybertruck, Model 3Left and right front lamp C4 connectors (export), Ambient Air Temperature Sensor, Ambient air temperature sensor

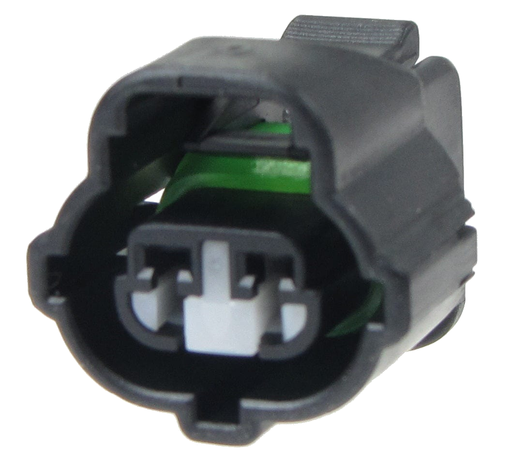

2 Pins Female connector | PRC2-0082-B
PRY2-0082Dodge Viper, Nissan—Alternator, Windshield Washer Pump / Windshield Washer Level Sensor

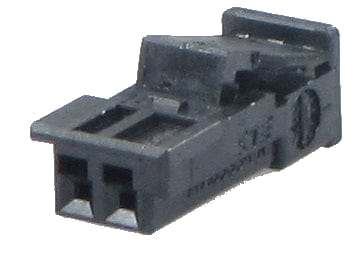

2 Pins Female connector | PRC2-0086-B
PRY2-0086DAF, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, TeslaCybertruck, Cybertruck, Cybertruck, Cybertruck, Cybertruck, Cybertruck, Cybertruck, Model 3, Model 3, Model 3, Model 3Occupancy Sensor Switch (SBR) - 2R Center, Occupancy Sensor Switch (SBR) - 2R Left, Occupancy Sensor Switch (SBR) - 2R Right, Speaker 25mm Tweeter - A-Pillar Left, Speaker 25mm Tweeter - A-Pillar Right, Speaker 60mm Fullrange - A-Pillar Left, Speaker 60mm Fullrange - A-Pillar Right, Evaporator left floor thermistor, Evaporator right floor thermistor, Front-left occupancy sensor, Front-right occupancy sensor
2 Pins Female connector | PRC2-0096-B
PRY2-0096Buick Lacrosse / GMC, Chevrolet / GMC, Chevrolet / GMCExpress / Savana, Silverado / Sierraknock sensor, Front and rear wheel-speed sensors, Front wheel-speed sensors
2 Pins Female connector | PRC2-0116-B
PRY2-0116Chevrolet / GMC, Chevrolet / GMC / Cadillac, Chrysler / Dodge, Chrysler / Dodge, Chrysler / Dodge, Chrysler / Dodge, Dodge, Dodge / Ram, Jeep, Jeep, Jeep, Jeep, YanmarKodiak / TopKick C-Series, Tahoe / Suburban / Yukon / Escalade, 300 / Magnum / Charger, Aspen / Durango, Town & Country / Caravan, Town & Country / Grand Caravan, Caliber, Ram Pickup, Commander, Compass / Patriot, Grand Cherokee, LibertyManual-transmission speed sensor on 8.1L, Power-liftgate cinch-latch switch, Engine oil temperature sensor, Engine oil temperature and hybrid output-speed sensor, Brake-fluid level switch, C338 right-hand-drive diesel connector, Brake-fluid level switch, Oil temperature and front/rear prop-shaft speed sensors, Oil-temperature and washer-fluid level sensors, Brake-fluid level switch, Oil-temperature and washer-fluid level sensors, Washer-fluid level switch, Yanmar diagnostic set (PRCS-YAN-004)
3 Pins Female connector | PRC3-0011-B
PRY3-0011Dodge / Ram, Iveco, RamRam Pickup, 2500 / 3500 / 4500 / 55006.7L diesel diagnostic port, Iveco diagnostic set (PRCS-IVECO-UPGRADE-2), 6.7L diesel diagnostic port

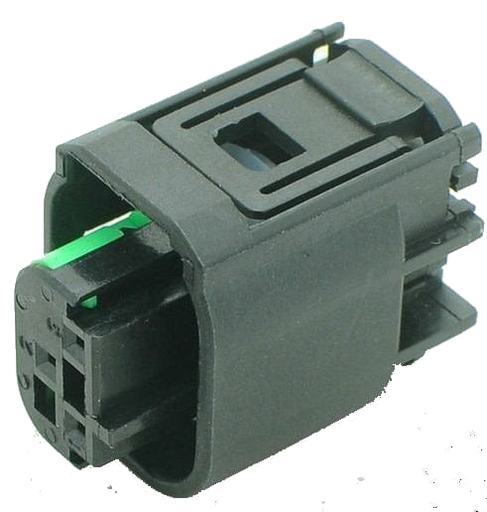

3 Pins Female connector | PRC3-0026-B
PRY3-0026AGCO, Chrysler, Chrysler / Dodge, Chrysler / DodgePacifica, 300 / Magnum / Charger, Town & Country / CaravanAGCO diagnostic set (PRCS-AGCO-001), Park assist sensors 7–10, Brake pedal travel sensor, Park assist sensors 7–10

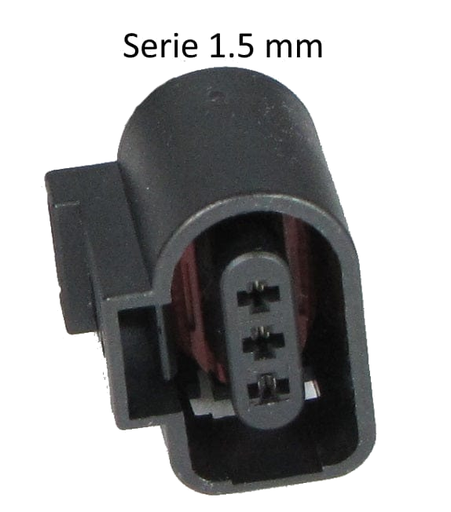

3 Pins Female connector | PRC3-0040-B
PRY3-0040Dodge, VolkswagenJourneyDiesel turbo position sensor, Volkswagen Group diagnostic set (PRCS-VW-1)
3 Pins Female connector | PRC3-0063-B
PRY3-0063Chevrolet / GMC, Chevrolet / GMCExpress / Savana, Kodiak / TopKick C-SeriesFront park/turn-lamp assembly connector J1, Electric air-compressor ground inline circuit
3 Pins Female connector | PRC3-0097-B
PRY3-0097DAF, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, Tesla, TeslaCybertruck, Cybertruck, Cybertruck, Cybertruck, Model 3, Model 3, Model 3, Model 3Seat Ventilation Fan - 1R Backrest Left, Seat Ventilation Fan - 1R Backrest Right, Seat Ventilation Fan - 1R Cushion Left, Seat Ventilation Fan - 1R Cushion Right, Front-left backrest ventilation fan, Front-left cushion ventilation fan, Front-right backrest ventilation fan, Front-right cushion ventilation fan
4 Pins Female connector | PRC4-0028-B
PRY4-0028Chevrolet / GMCKodiak / TopKick C-SeriesRear air-suspension solenoid inline circuit

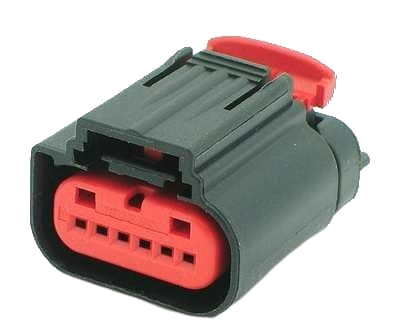

6 Pins Female connector | PRC6-0033-B
PRY6-0033Ford F-150 250 350 / Mustang Lincoln 2011-2017 / A4, Yanmar, Yanmar—accelerator pedal / Throttle Pedal / Side Radar / Blind Spot Sensor, DPF differential pressure sensor (6P), Yanmar diagnostic set (PRCS-YAN-001)

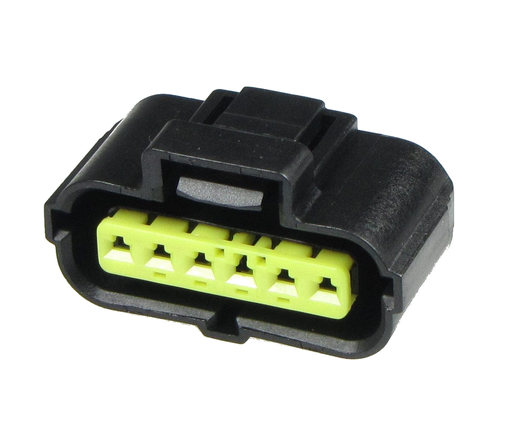

6 Pins Female connector | PRC6-0042-B
PRY6-0042Ford / Ford 1U2Z-14S411-AY, / WPT-1091 / Ford F5AB-14A464-EA / Volvo Focus Hyundai, Ford / Ford 1U2Z-14S411-AY, / WPT-1091 / Ford F5AB-14A464-EA / Volvo Focus Hyundai Kia / Mitsubishi, Hyundai / Kia, Hyundai /Kia—accelerator pedal / fuel pump, accelerator pedal / fuel pump / Petrol Pump
6 Pins Female connector | PRC6-0066-B
PRY6-0066TeslaModel 3Front harness inline connection

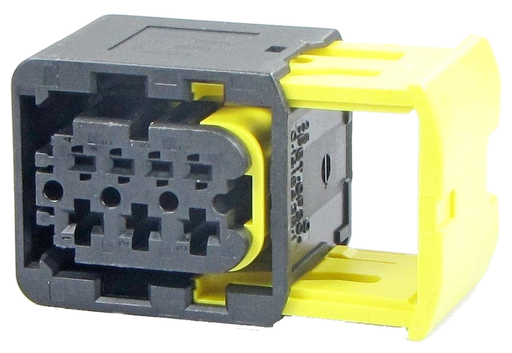

7 Pins Female connector | PRC7-0003-B
PRY7-0003DAF, Scania, Tesla, TeslaCybertruck, CybertruckScania diagnostic set (PRCS-SCANIA-001), Tonneau Motor - Left, Tonneau Motor - Right

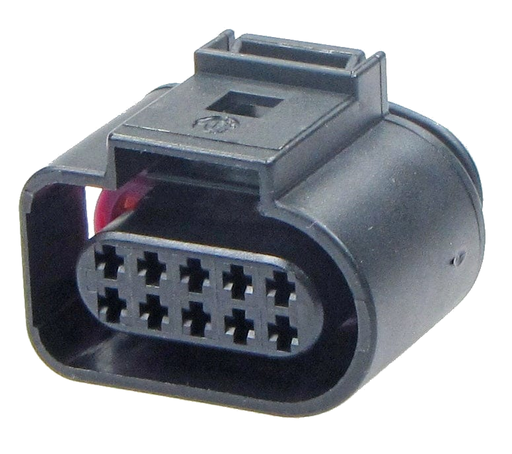

10 Pins Female connector | PRC10-0010-B
PRY10-0010DAF, STILL, VB-Airsuspension, Volkswagen—STILL diagnostic set (PRCS-STILL-VAG), VB-Airsuspension diagnostic set (PRCS-VB-1), Volkswagen Group diagnostic set (PRCS-VW-1)
B-side pending
PRY10-0023———

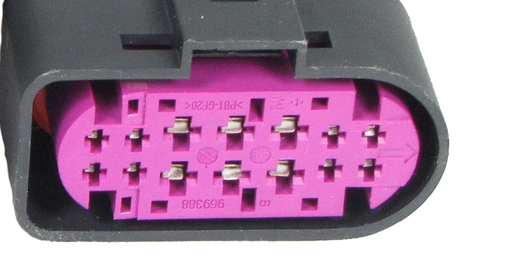

14 Pins Female connector | PRC14-0003-B
PRY14-0003Tesla, Tesla, VolkswagenModel S (2012–2020)Headlight — Lighting, Main headlamp, Volkswagen Group diagnostic set (PRCS-VW-1)

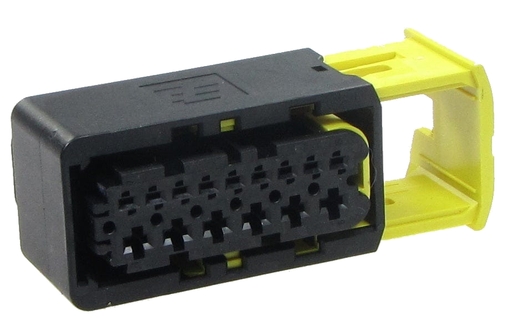

15 Pins Female connector | PRC15-0002-B
PRY15-0002———

General Terms and Conditions

Internal ReferencePRCS-UNI-04
HS Code85366990
Weight5.0 kg
Customer lead time77 days
