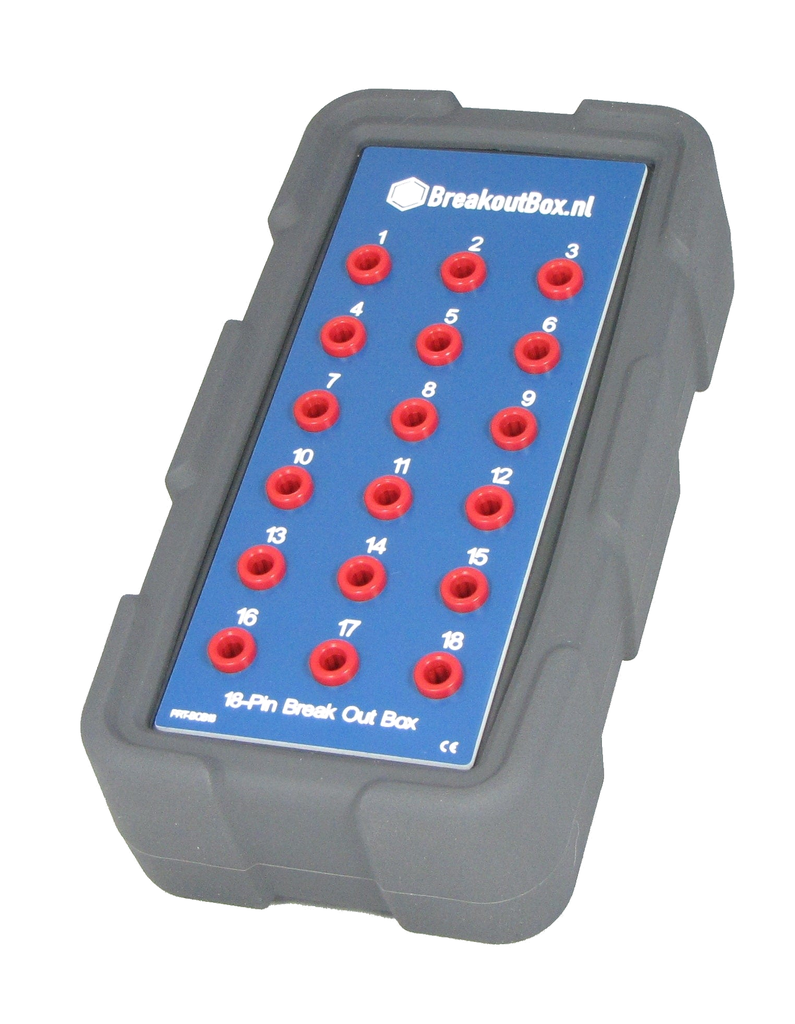

18-Pin Breakout Box for component testing
The PRTK-BOB18 supports component-level diagnostics in the workshop. Use compatible Y-cables to connect between the vehicle wiring harness and the sensor or actuator.
- Measure live signals with a multimeter or oscilloscope
- Test sensors and actuators without piercing wires
- Keep connectors and wiring protected during fault finding
SpecificationsConnector details
| Channel count | 18 |
| Measurement | Parallel |
| Failure simulation | Available with serial upgrade kit |
| Compatible with multimeter / oscilloscope | Yes |
Y-cable compatibilityChoose the right cable range
Parallel Y-cables
Works with all Breakoutbox parallel Y-cables from 1–18 pins.
View compatible parallel Y-cables
Serial Y-cables
Works with Breakoutbox serial Y-cables from 1–9 pins.
View compatible serial Y-cables
Need a custom cable?
For a different pin count, cable length or configuration, we can build it. Contact us.
For a different pin count, cable length or configuration, we can build it. Contact us.
| Internal Reference | |
|---|---|
| HS Code | 85371098 |
| Weight | 0.25 kg |
| SEO name | PRTK-BOB18 |
Similar products
Other products you may also be interested in.
This goes with it
Useful additions for this Breakout Box.
![[PRT-CASE1-DIV] Stabelbar opbevaringskasse 60x40x12cm | PRT-CASE1 (Med inddelinger)](/web/image/product.product/57314/image_512)

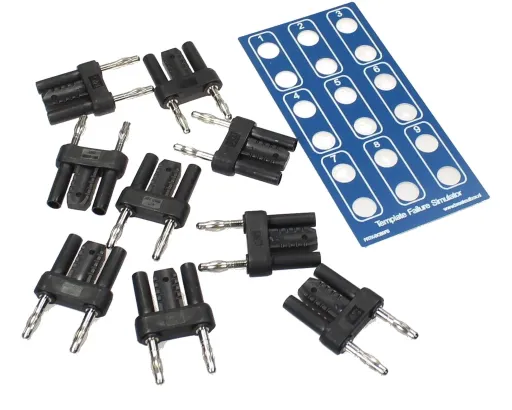

![[PRTK-BOB18-FSB] Serial Measurement Upgrade Kit for 18 Pin Breakout Box | PRTK-BOB18-FSB](/web/image/product.product/10213/image_512)
