Failure simulation
for all ECU & low voltage modules.
Whether you’re testing powertrain systems or body electronics,
we provide the right interface.
Accelerate Vehicle Development
Reduce testing time, increase reliability, and gain full control over your validation process. The Failure Simulation Box gives engineers the power to reproduce real-world faults in a controlled environment.
From sensor interruptions to wiring issues, every scenario can be tested without risking downtime or damaging valuable prototypes.
By combining the FSB with tailor-made adapter cables for each ECU, we ensure flawless integration with your engine setup.
The result: faster debugging, more accurate diagnostics, and a significant reduction in development cycles.
+15%
Faster vehicle development
232
ECU pins connected
all
ECU & Component types
∞
Simulation options
Keep the engine running

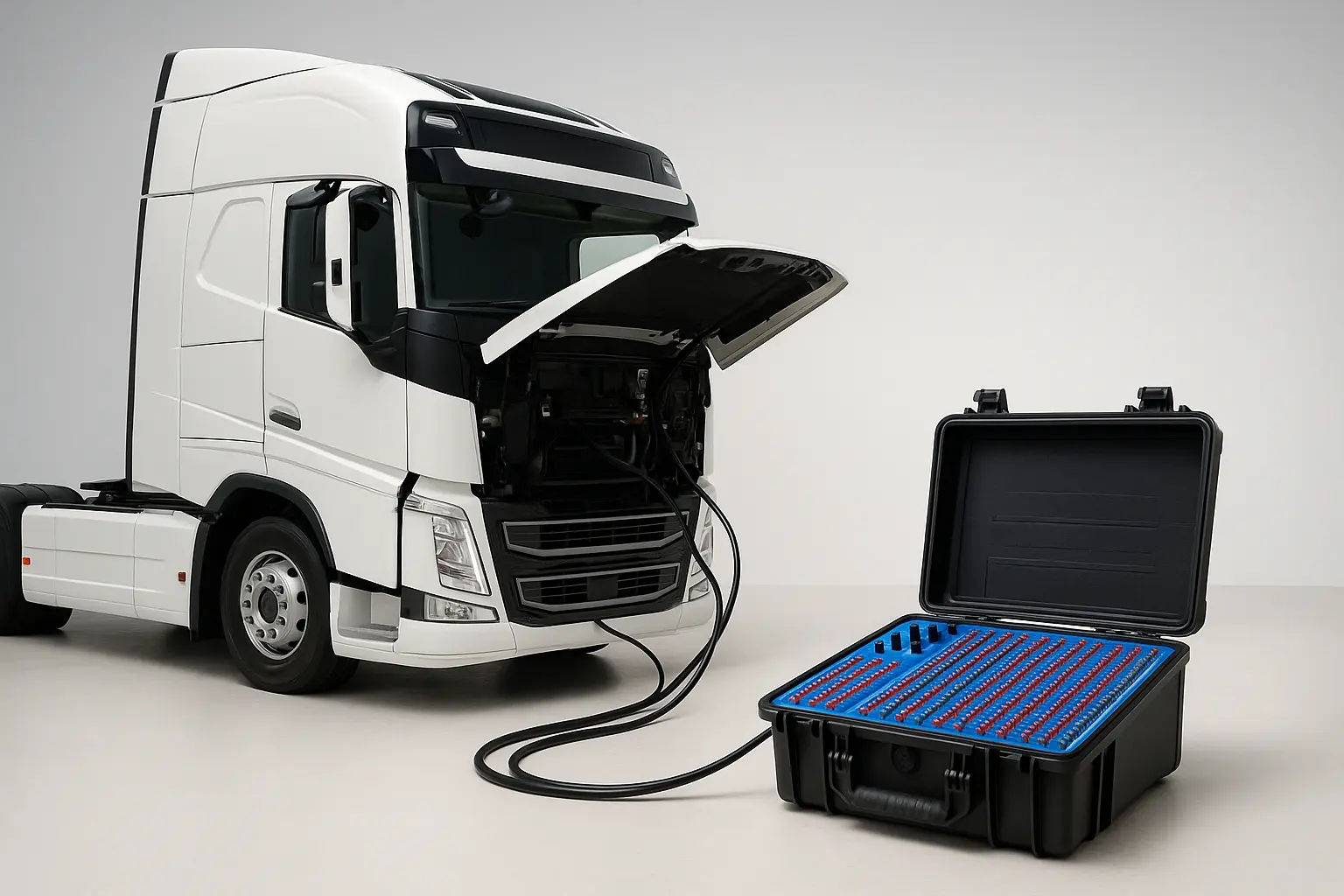

The FSB is designed to simulate faults on a working and operational engine.
In order to ensure a correct functioning engine, we make custom adapter cables according to the schematic that belongs to the ECU of that specific engine.
Compatible with any ECU
We design & manufacture custom adapter cables for any ECU type or low-voltage connector system—regardless of make or application.
Contact us with your requirements to get started.

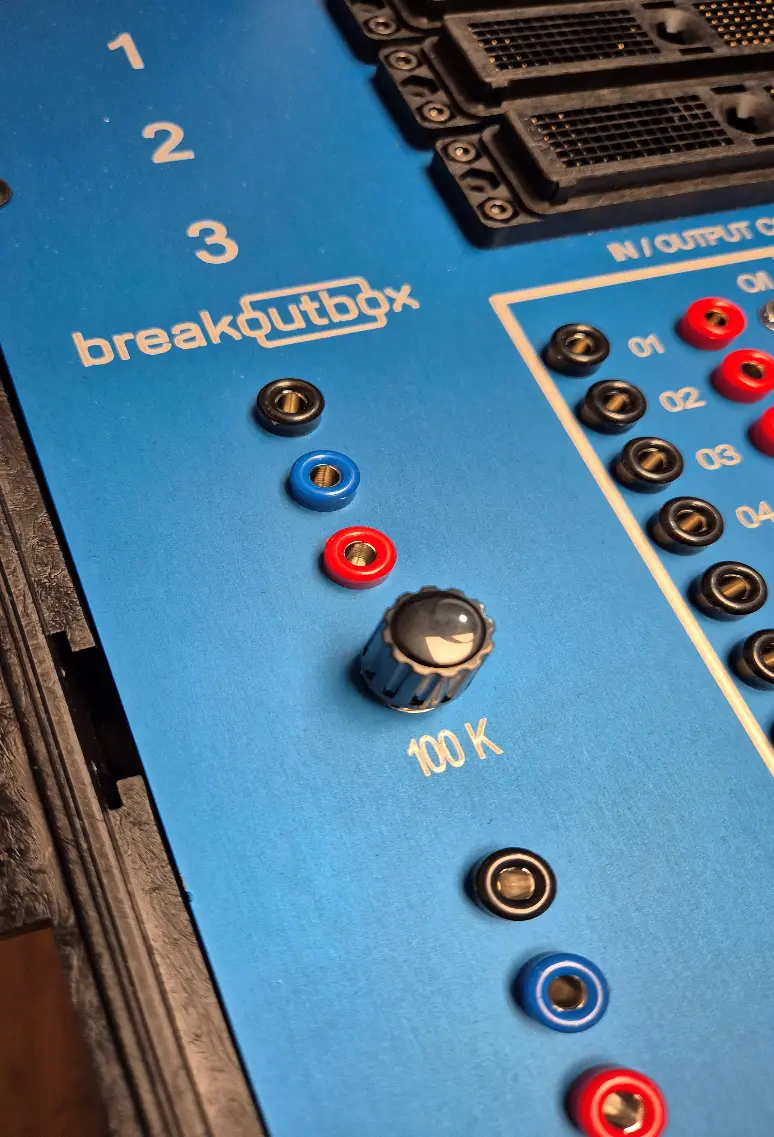

Simulate Resistance
Simulate poor contact in the plug terminals. Simulate resistance ranging from 10, to 100 kΩ. Manipulate signals using an external device. (i.e.: CAN-bus offset, Signal offset, voltage feeds, etc..)

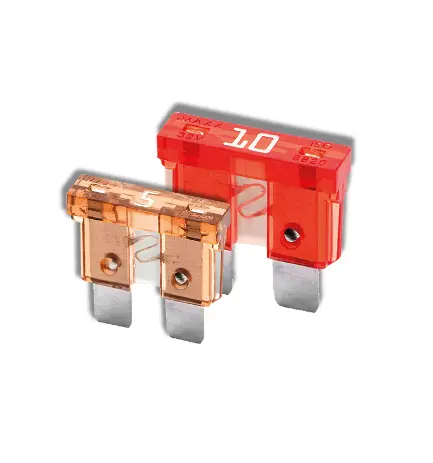

Automotive Grade Fusing
Standard, all channels are fused with a 5A automotive fuse, but you can easily be replaced these with a 10A fuse where needed.

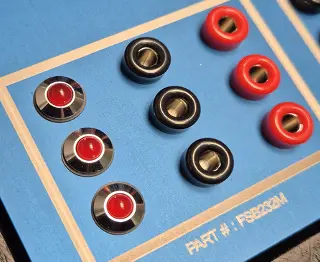

Visualize Signals
Three integrated red LED’s can be connected to all signals like fuel injectors, relays, ignition, etc.

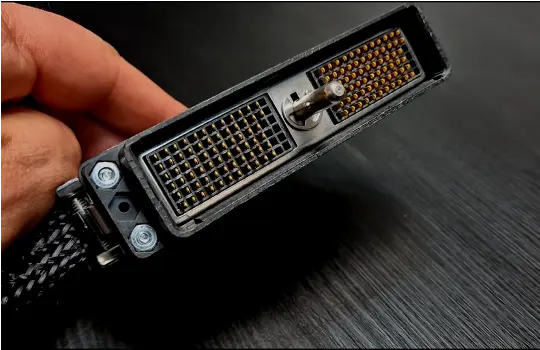

Aerospace Grade Locking
Canon ITT - ZIF connectors used to connect the adapter cable. This ensures minimum of wear and tear on the measuring equipment and on the gold-plated contacts.
Key Functions
Wire break simulation
Simulate real-world wire breaks safely to test ECU responses and train diagnostic skills.
Signal IN – Signal OUT Configuration
Every ECU pin can be routed, manipulated, and measured, up to 10A signals. Anything higher is safely looped through while still allowing parallel measurement.
Parallel & Series Measuring
Switches allow users to toggle between normal operation (parallel) and inserting meters for AMP measurements (series).
Built-in Test Features
LED indicators and precise potentiometers simulate real-world issues like resistance, shorts, or supply faults.
Benefits
Safe & Flexible Fusing
Each channel on FSB-M has 5A fusing, easily upgraded to 10A. LT models skip fuses for lighter applications.
Ground & Supply Management
Ground and supply connections are taken from the harness, keeping setups modular and realistic—no single point on the box.
Custom Channel Identification
Laser-engraved overlays enable clear labeling of each pin. Perfect for structured work (K94-01, A60-02) or functional names (INJ1, CAN1_H).
Training & Development Friendly
Overlay cover plates allow educators to hide faults for troubleshooting exercises, while the manipulation capabilities support ECU development and vehicle response tests.
Explore the lineup.
Discover our full range of Failure Simulation Boxes and find the model that fits your needs.
FSB 156 Channel Lite
Latest version. Greatest price.
Ideal for starters or field service— essential features, perfect for small teams.
Order
- Measure signals w/ 2mm terminals
- Interruption fault simulation
- No fusing
- No LED
FSB 155 Channel Pro
The original Failure Simulation tool.
The original tool — the basis for vehicle development or training sessions.
- Measuring signals w/ 2mm terminals
- Interruption fault simulation
- Fusing
- LED
FSB 232 Channel Pro
The ultimate Failure Simulation tool.
Comprehensive tool — optimize vehicle development or training sessions.
- Measuring signals w/ 2mm terminals
- Interruption fault simulation
- Fusing
- LED
FSB 5 Channel Lite
Latest version. Greatest price.
Interrupt signals on components. Ideal for study set-ups.
Order
- Easy signal switches
- Measure signals w/ 2mm terminals
- Interruption fault simulation
FSB 9 Channel Pro
The original mini-Failure Simulation tool.
The original tool — the basis for failure simulation on component level.
- Easy signal switches
- Measure signals w/ 2mm terminals
- Interruption fault simulation
FSB 18 Channel Pro
The ultimate Failure Simulation tool.
The original tool — the basis for failure simulation on component level.
Order
- Easy signal switches
- Measure signals w/ 2mm terminals
- Interruption fault simulation
Custom Adapter Cable
We specialize in producing custom wiring harnesses designed for specific low-volume vehicles.
Custom made
Our solutions are particularly suitable for vehicle development and customizations by truck bodybuilders and automotive racing teams.
High Quality
With our expertise, you can rely on a high-quality, tailored product that meets your exact requirements.
from €995
With our expertise, you can rely on a high-quality, tailored product that meets your exact requirements.
