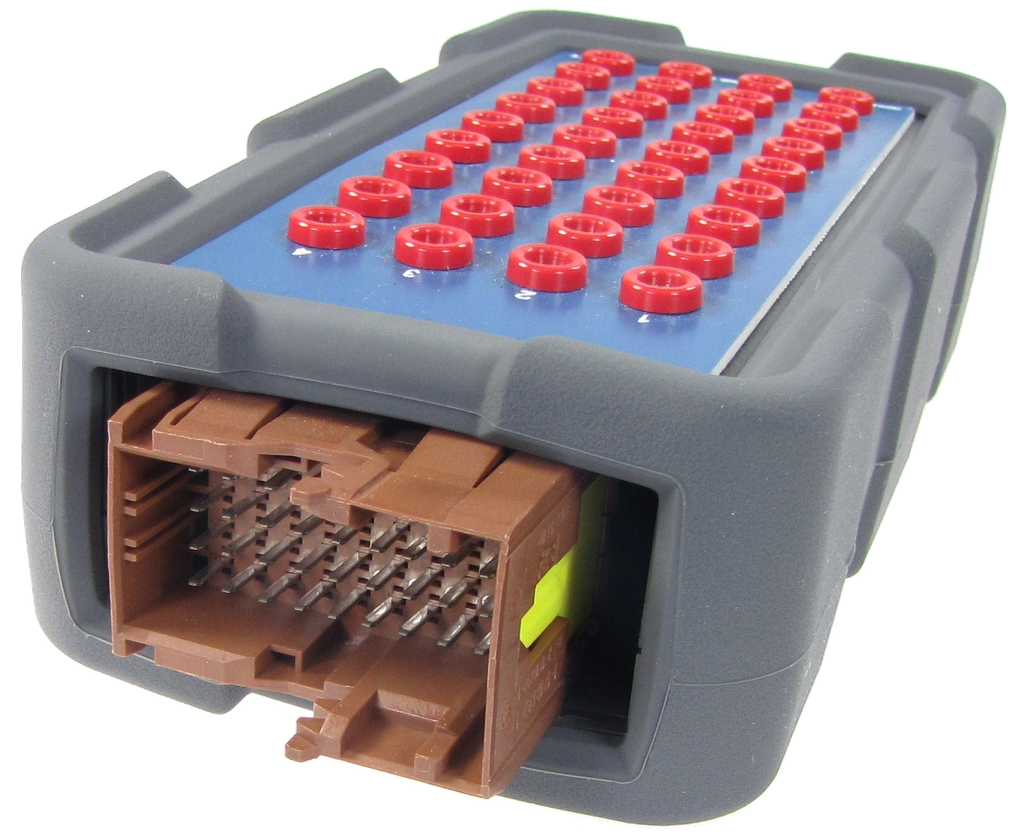

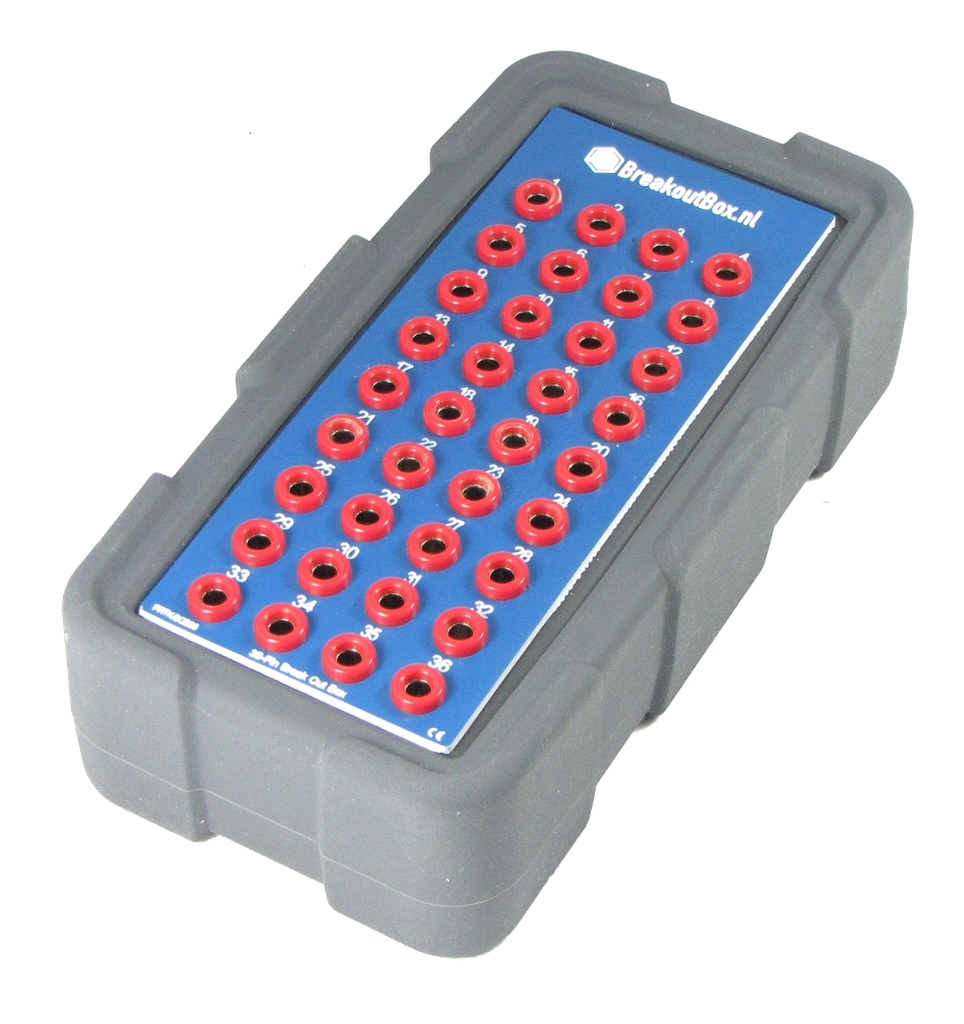

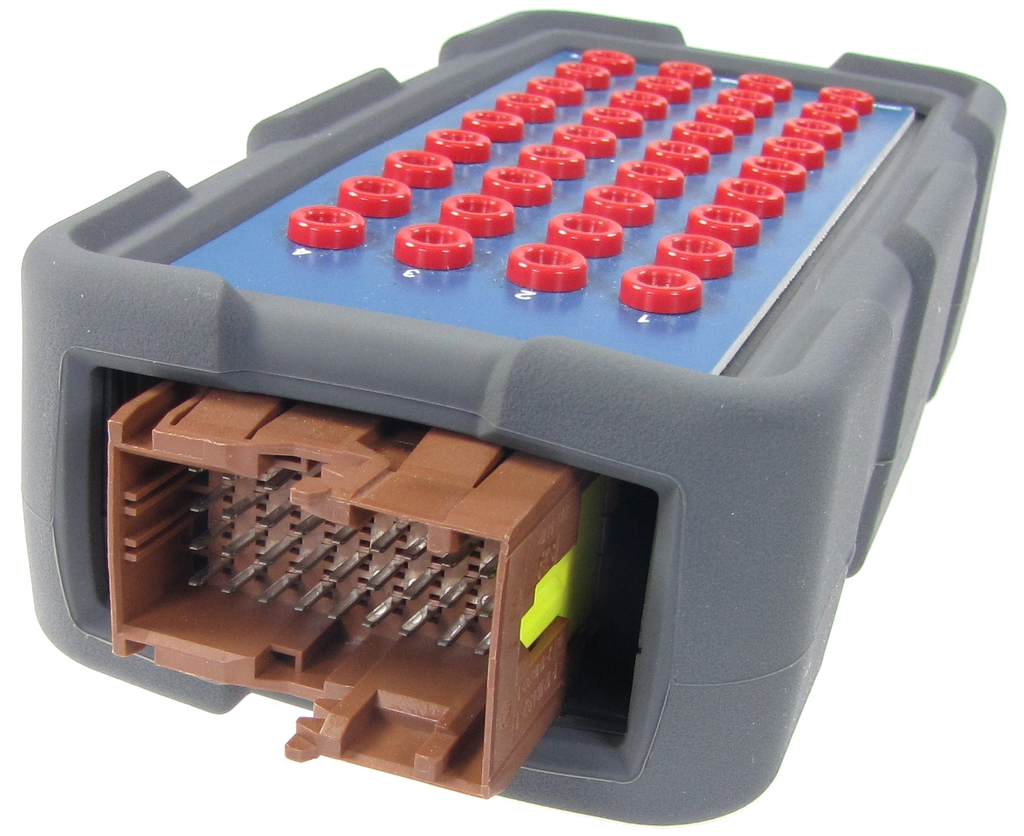

36-Pin Breakout Box for component testing
The PRTK-BOB36 supports component-level diagnostics in the workshop. Use compatible Y-cables to connect between the vehicle wiring harness and the sensor or actuator.
Measure without piercing wires
- Measure live signals with a multimeter or oscilloscope
- Test sensors and actuators without damaging wiring or connectors
- Use compatible Y-cables for the relevant connector and pin count
- Keep the diagnostic setup organised and repeatable
Check the required connector and compatible Y-cable before ordering.
SpecificationsConnector details
| Channel count | 36 |
| Measurement | Parallel |
| Failure simulation | Available with serial upgrade kit |
| Compatible with multimeter / oscilloscope | Yes |
Y-cable compatibilityChoose the right cable range
Parallel Y-cables
Works with all Breakoutbox parallel Y-cables from 19–36 pins.
View compatible parallel Y-cables
Serial Y-cables
Works with Breakoutbox serial Y-cables from 10–18 pins.
View compatible serial Y-cables
Need a custom cable?
For a different pin count, cable length or configuration, we can build it. Contact us.
For a different pin count, cable length or configuration, we can build it. Contact us.
| Internal Reference | PRTK-BOB36 |
|---|---|
| HS Code | 85371098 |
| Weight | 0.7 kg |
| SEO name | PRTK-BOB36 |
Similar products
Other products you may also be interested in.
This goes with it
Useful additions for this Breakout Box.

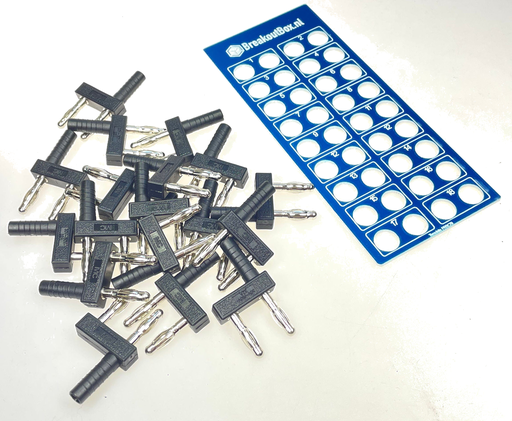

![[PRTK-BOB36-FSB] Serial Measurement Upgrade Kit for 36 Pin Breakout Box | PRTK-BOB36-FSB](/web/image/product.product/58289/image_512)
